The Case Study Houses were and are an illustration of modernism’s intended audience—the masses. These homes were intended to change the way we look at residential design and forever alter the way we live. Built or unfinished, preserved or lost, join us as we take a closer look at each of the iconic designs that carry the name “Case Study House.” In this installment we look at house #12.

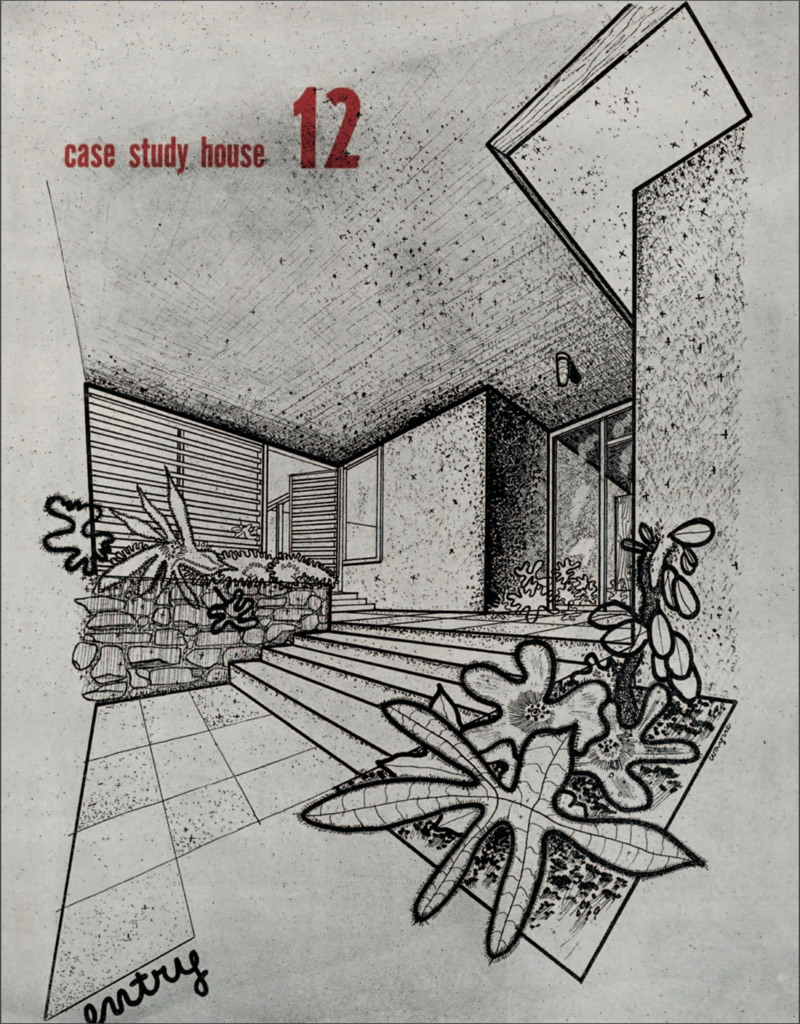

Black-and-white photo of a midcentury home entryway with plants, a glass door and a stairway
The home was designed to follow the natural slope of the site, with the entry two feet lower than the living room. An additional lath house on the opposite end of the home is two feet higher than the living room.

Meet House #12

Architect Whitney R. Smith designed two unbuilt Case Study Houses, both an exercise in re-thinking the traditional layout of a home. Number five was an extreme example of outdoor living and Number 12 was meant to revolve around a love for horticulture.

The layout allows for the main living space to have a view of plants from any of the lath houses.

Layout

A roughly X-shaped design allowed for maximum access to outdoor areas. One straight section of the “X” contains a lath house adjoined with the entrance hall, followed by the living room and then a second lath house. “The house follows the natural slope of the land from north to south. Living room is two feet lower than the lath house behind it, and the lath house at the entrance is two feet below living room level,” states the introductory December 1946 Arts & Architecture article.

The other section of the “X” contains one wing with a main bathroom shared by two bedrooms on either side. A second wing houses a guest bedroom with a bath and dressing area. The guest bedroom is separated from the main home by a car port and has its own terrace, making it a flexible private space.

Printed layout of a midcentury home in an "x" shape.
An “X” shape and a diagonal placement on the lot allowed for maximum outdoor spaces. “Through-the-Lath-House entrance gives convenient access to any part of the house, each part is a distinct self-contained area zoned for orderly and unconfused function by means of distance and orientation.” Wardrobe and storage closets plus indoor plants helped to provide a sound buffer for the private rooms.

The Outdoor Connection

Transition from indoor to outdoor spaces is prevalent throughout the entirety of the design. “The plan is so arranged that one lath house provides inviting transition from the outdoors to the glassed front entrance; another, at the opposite end of the large multi-use room, makes a background for a freestanding fireplace.” Additionally, the room placement allows for all parts of the main living area to see plants from at least one of the lath houses.

Rather than a parallel orientation on the lot, the home was planned with a diagonal placement. This would have helped to avoid northern exposure and also created outdoor zones for the connecting rooms.

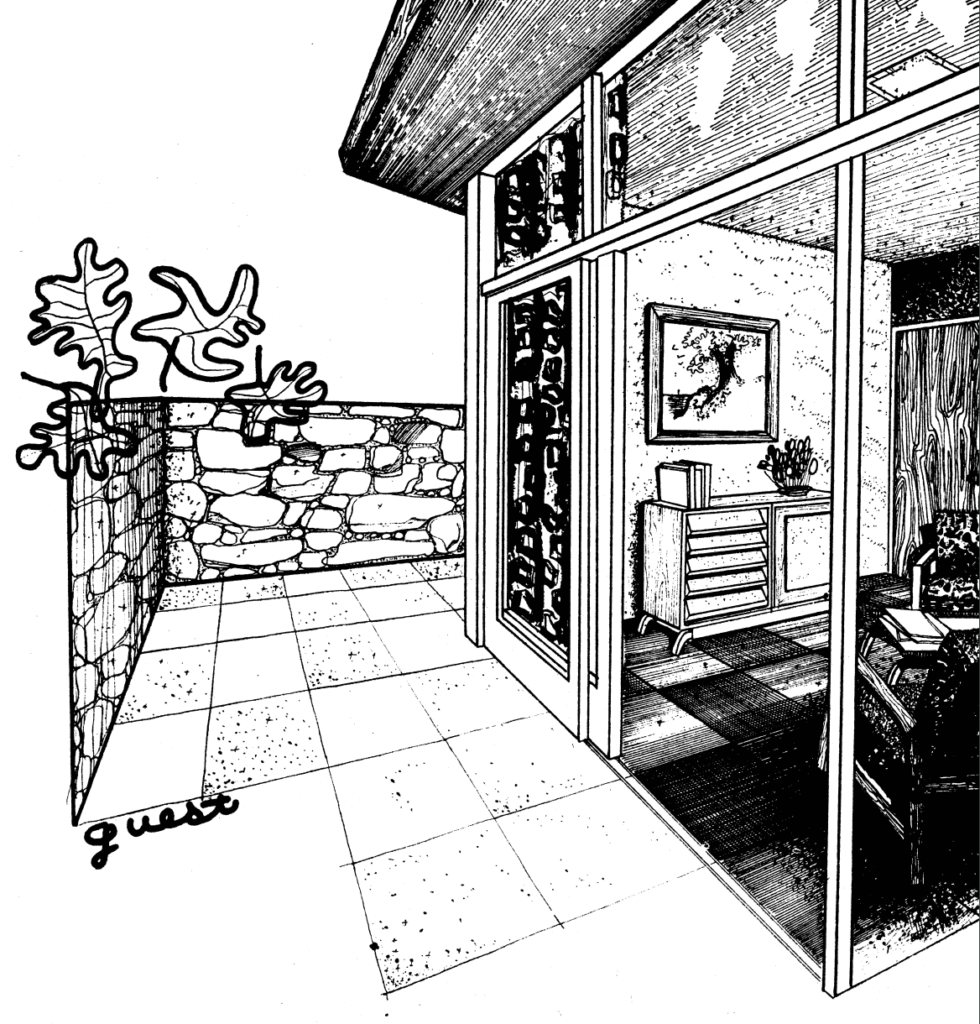

Black-and-white photo of the guest room of case study house #12
A guest room was separated from the main home by the car port. With its own bath, dressing area and outdoor space, the placement made the guest room very private.

Materials

The stand-out feature for Case Study House #12 were the lath houses with their open wooden slats. The home was planned to be wood frame on a concrete slab with plaster on the interior and exterior. Though this house was never realized, the design was a creative study in re-imagining the conventional layout.
